HOBBY WING - HWI81010020 - EZRUN-18A SL ESC

HOBBY WING - HWI81010020  - EZRUN-18A SL ESC

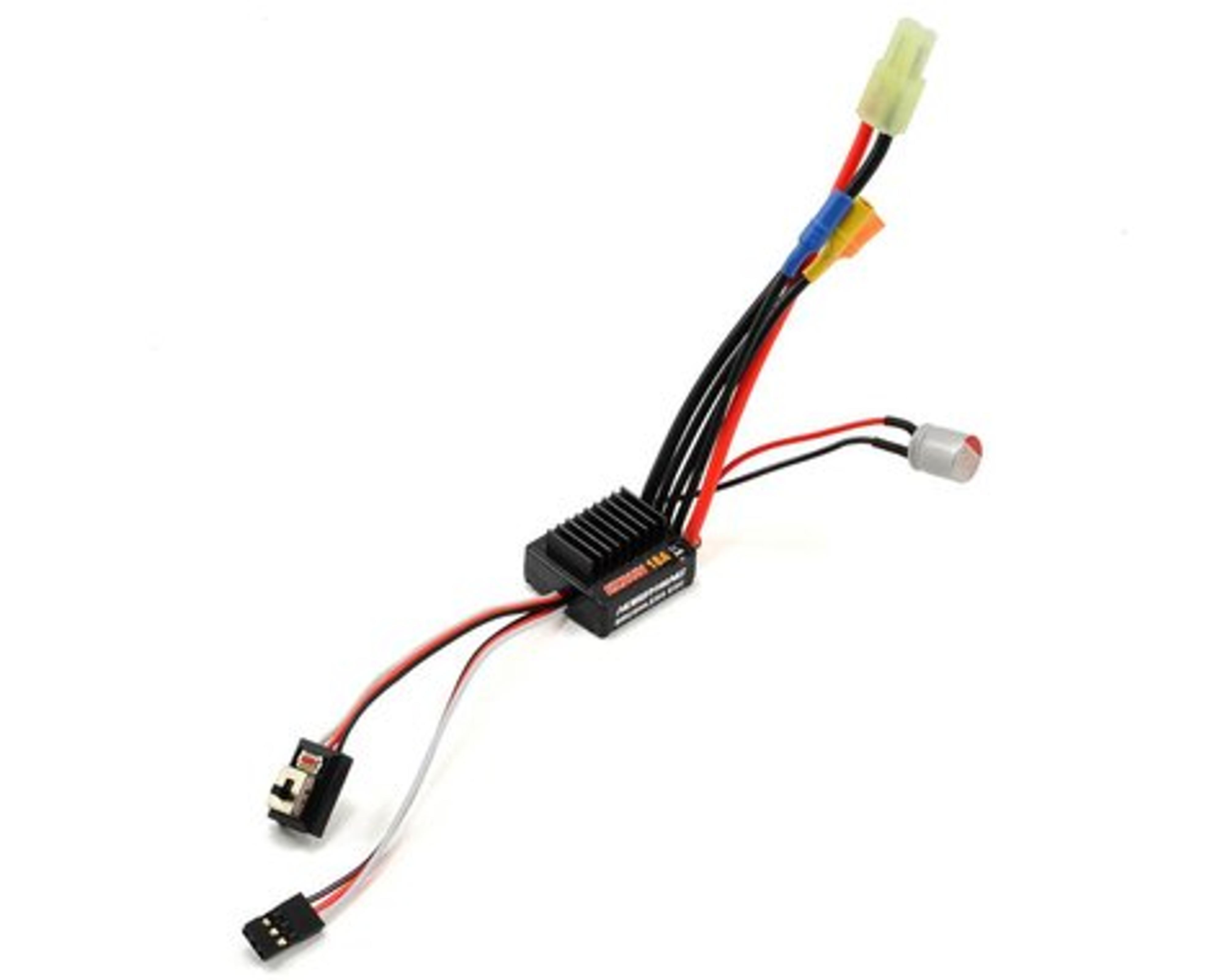

This is the Hobbywing EZRun 18A Sensorless Brushless ESC.

Features:

• Compatible with sensorless brushless motors.
• High quality components, big current endurance.
• Excellent start-up, acceleration and linearity features.
• Plenty of programmable items, suitable for various of chassis's, tires and racing tracks.
• Multiple protection features: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection.
• Internal timing can be changed easily to make the ESC suitable for various of motors.
• Easily programmed with the SET button, LED Program Box, Multifunction LCD Program Box and USB Link Software.
• ESC firmware can be updated through the USB adapter in the LCD Program Box.

Specifications:
Output: Continuous 18A, burst 50A.
Input: 4-9 cells NiMH/NiCd or 2-3S LiPo.
BEC: 6V/1A (Linear mode built-in BEC).
Resistance: 0.01 Ohm.
Motor Supported: Sensorless Brushless Motor.
Suitable Motor:

• With 4-6 cells NiMH/NiCd or 2S Lipo: On-Road&ge12T,  Off-Road&ge8T
• With 6-9 cells NiMH/NiCd or 3S Lipo: On-Road&ge18T,  Off-Road&ge24T

Suitable Car: 1/18 on-road sport.
Cooling Fan: Not included.
Size: 31.5mm(L) 27.5mm(W) 15mm(H).
Weight: 19g (Without wires)
